Magnetic Coolant Separator

STAR TRACE's specialized in manufacturing a wide range of coolant Filtration systems. A team of committed professionals with more than one decade of experience are available, who have designed, developed and supplied Filters to various Industries. Star Trace filters are working in different Industries like Engineering, Automobile, Bearings, Spindles, Textile Machinery Rolling Mills, Wire drawing etc., The filters have been supplied to both Indigenous and Imported Machines and also used as original fitment by many machine tool Builders. The company has wide range of standard models to choose from and special / larger system can be designed and supplied as per requirement and application.


Application

Magnetic Filter are suitable for Cylindrical, Centreless, surface & Internal Grinding Machines, Thread Grinders, Honing Machines, Rolling Mills etc., It is also used as a pre-filter alongwith other types of coolant filters like Paper band or Hydro cyclone filters. The unit can be fitted on existing.


Construction & Working Principle

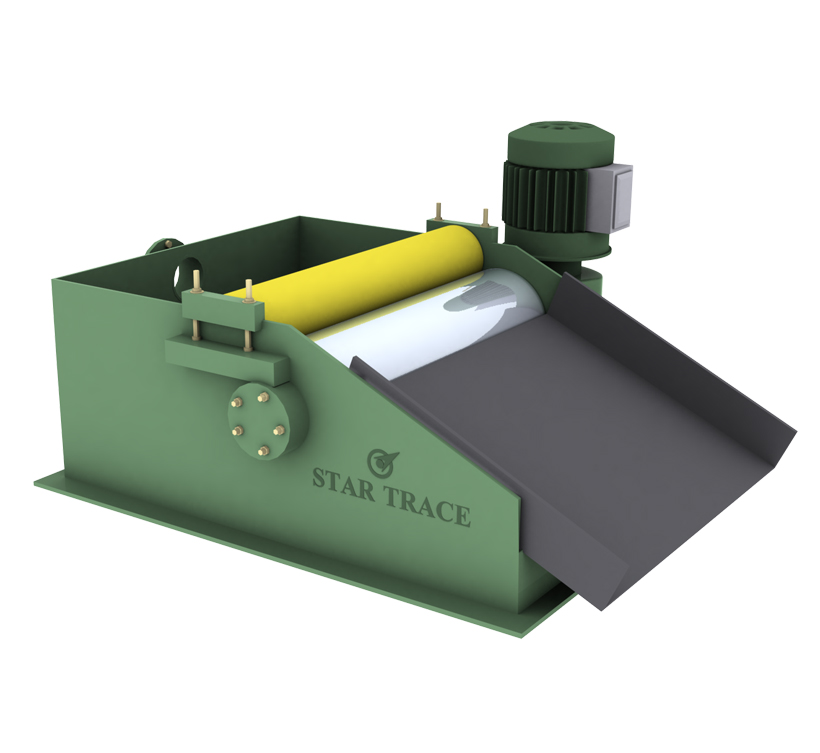

Magnetic Filter consists of powerful magnetic drum driven by double reduction worm geared motor. The contaminated coolant from the machine is passed is through the gap between the drum and the body. The dust particles are attracted by the drum and a rubber roller squeezes the swarf which is scrapped off by a scrapper plate. The clean coolant is collected is the coolant tank for recirculation to the machine.


Advantages of Magnetic Filter

  • Removes ferrous particles from coolants.
  • Improves surface finish on components.
  • Increases coolant life & wheel life.
  • Frequent cleaning of coolant tank is avoided.
  • Con be used as a pre-filter for other filtration systems.

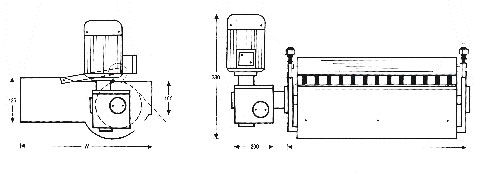

Specifications of Magnetic Separator

MODEL

FLOW RATE

Ltr/Min

L
W
MAGNETIC DRUM
RUBBER ROLLER

MOTOR

H.P.

DIA
LENGTH

SPEED

rpm

DIA
LENGTH
ST 50
50
225
400
120
185
2.5
6.0
185
0.25
ST 70
70
300
400
120
265
2.5
60
265
0.25
ST 100
100
400
400
120
365
2.5
60
365
0.25
ST 150
150
530
450
120
490
2.5
60
490
0.50
ST 200
200
630
500
120
590
2.5
60
590
0.50
ST 300
300
830
525
120
790
2.5
60
790
0.50
ST 500
500
630
500
150
590
2.5
80
590
0.75
ST 1000
1000
830
525
150
790
2.5
80
790
0.75
ST 1500
1500
1050
750
200
1000
2.5
100
1000
1
